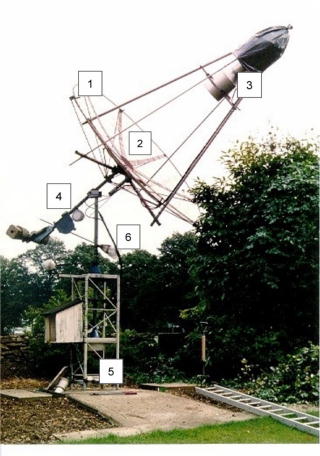

  The dish, feed and Az/El mount

  1. 2.4 M (8ft dish), F/D 0.6
  2. Reflector - 12.5mm (0.5") "chicken wire"
  3. W2IMU dual mode circular feed horn

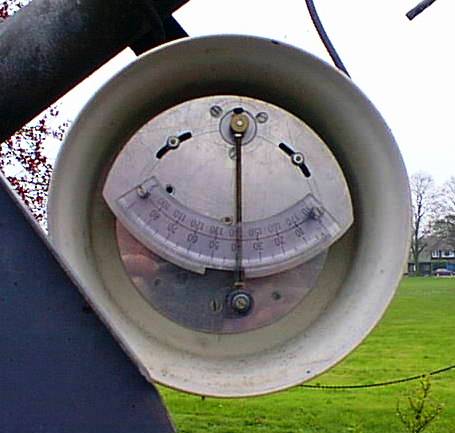

  4. Elevation indicator
  5. Azimuth indicator
  6. Elevation drive
